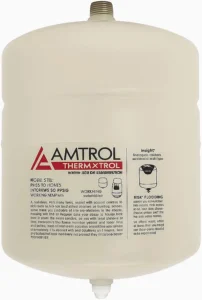

Amtrol ST-5 (Therm-X-Trol) is a water heater expansion tank, designed for use in domestic hot water heating systems to eliminate the potential hazards of water expansion. Water heater expansion tank is commonly installed in a domestic hot water system that contains a backflow preventer, a check valve or a pressure reducing valve. The patented InSight Indicator Cap changes its color when the tank needs to be replaced.
Features
- Eliminates the waste of energy and water, thus saving money;
- Protects the water heater and plumbing fixtures from premature failure;
- Reduces potential safety hazards associated with thermal expansion;
- Prevents a dangerous pressure build-up in the system;
- Prevents the relief valve from going off;
- Therm-X-Trol brand is the #1 choice of Professional Installers;
- NSF/ANSI 61®, IAPMO, SBCCI & City of Los Angeles listings.
Tech Specs
- Factory pre-charged 40 psig
- System connection: 3/4″ male threaded
- Stainless steel system connection
- Max. operating temperature: 200F
- Max. operating pressure: 150 psi
- Expansion tank volume: 2.0 gallons
- Max. acceptance factor: 0.45
- Height: 12-5/8″
- Diameter: 8″
