The Hole-y Heat Exchanger: An Example of Why Regular Maintenance is Important

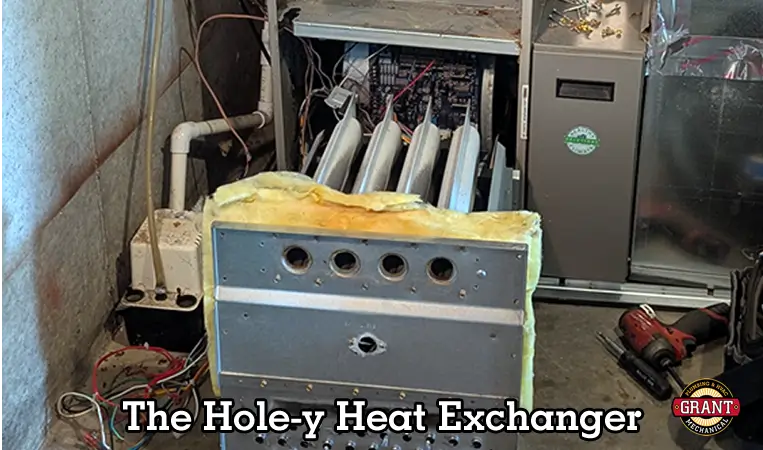

The Hole-y Heat Exchanger - Why Regular Maintenance is Important

During a routine maintenance service, our HVAC technician discovered a dangerously high carbon monoxide reading on a seven-year-old furnace during a high-fire combustion test. Further inspection revealed multiple holes in the unit’s heat exchanger. This is a critical issue because it means the exhaust from the burning gas, which should be safely vented outside, was instead leaking into the home’s circulating air. Ideally, a furnace’s heat exchanger should be completely sealed, directing all harmful exhaust fumes out through an exhaust vent, often connected to the home’s chimney. This incident underscores the vital importance of regular furnace inspections to prevent potentially life-threatening situations.

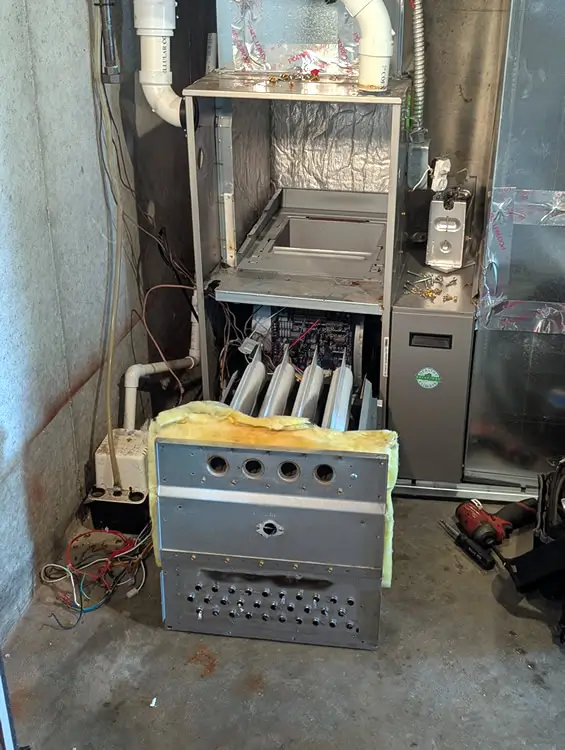

Changing heat exchanger out of a 7 year old furnace
Pulling out the bad heat exchanger.

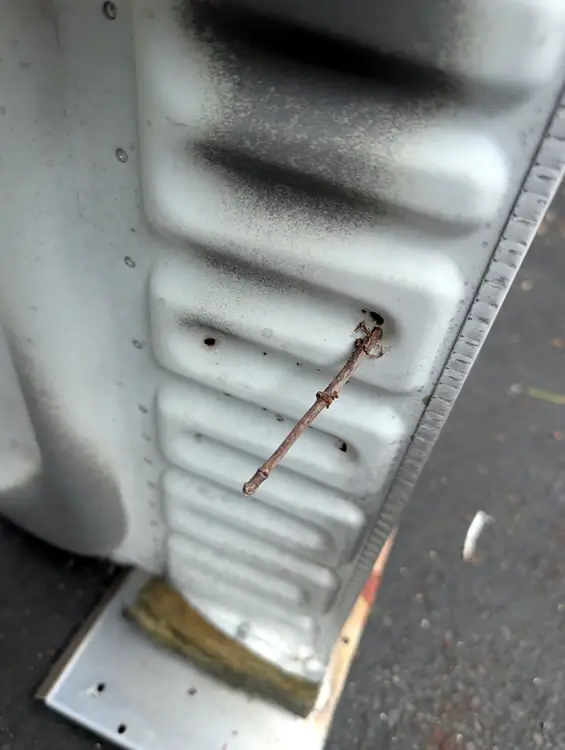

Heat Exchanger with holes
Look at the size of some of these holes!

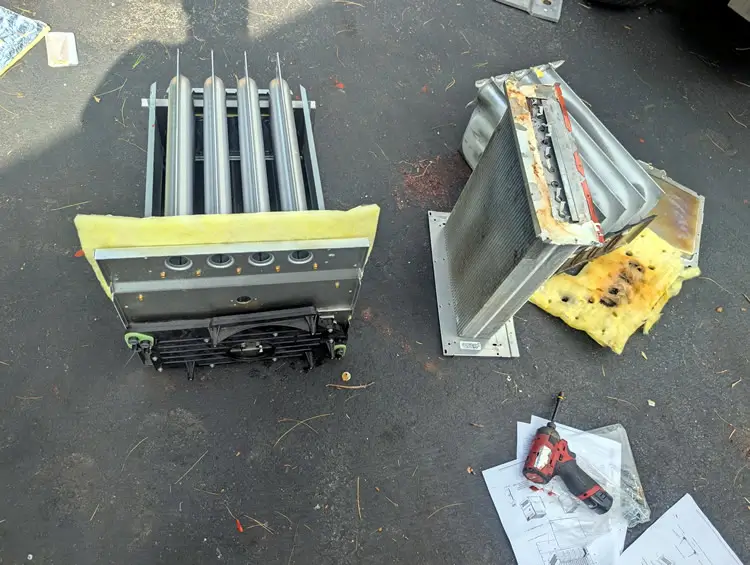

New Heat Exchanger to go in.
New Heat Exchanger on the left. Garbage Heat Exchanger on the right.

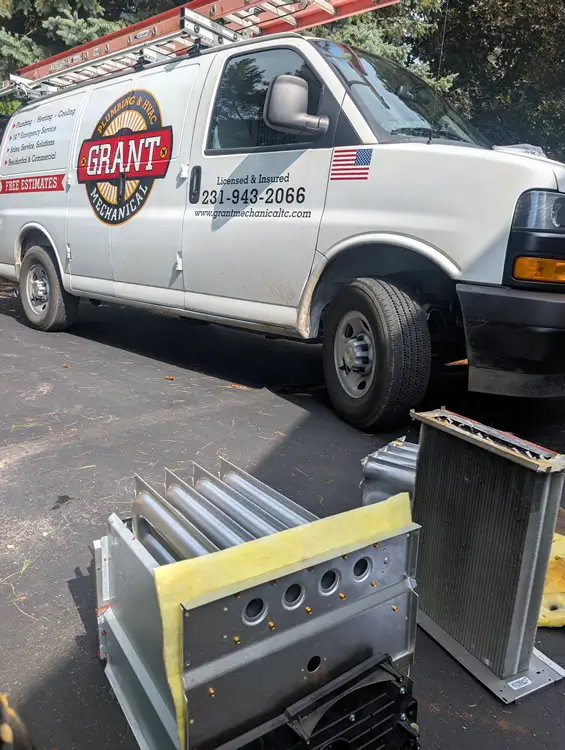

Grant Mechanical Van next to new Heat Exchanger
Grant Mechanical saves the day again! Thanks Mike for doing immaculate work!

A Way to Protect You and Your Family

We at Grant Mechanical recommend Kidde brand carbon monoxide detectors. Its a good idea to have one of these near your furnace. It will detect carbon monoxide and sound an alarm which tells you that there could be an issue with your furnace or gas water heater.

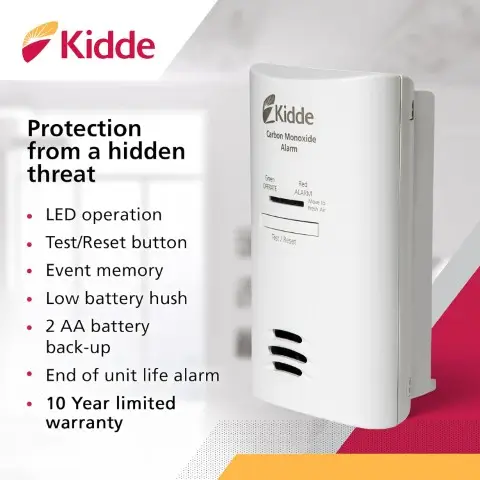

Kidde Carbon Monoxide Detector
